Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EP offers 63W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.
New and improved Smart Managed Plus switches
Along with the already great Smart Managed Plus features, GS305EP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language support.
Why GS305EP?
- Cost-effective business networking management features: VLAN, QoS, advanced PoE controls, etc.
- Data security and network separation to safeguard your business.
- Advanced per port PoE controls (including power allocation override) and remote enable/disable/power cycle.
- Smart Managed Plus switch that now provides PoE+ to power devices such as wireless APs, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices.
Why 300 Series NETGEAR Smart Managed Plus?
- NETGEAR has the largest PoE switch portfolio in the market.
- Provides both basic and advanced management features at a cost-effective price for SMBs.
- Uninterrupted PoE and PoE controls in a Smart Plus switch.
- Reliability of the NETGEAR switches.
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 5 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) |
| Certification | CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
| Depth | 101 mm |
| Height | 27 mm |
| Housing material | Metal |
| IGMP snooping | Y Yes |
| Input current | 1.25 A 1.25 A |
| LED indicators | Activity,Link,PoE,Power,Speed,System Activity, Link, PoE, Power, Speed, System |
| Link aggregation | Y Yes |
| MAC address table | 4000 entries 4000 entries |
| Mean time between failures (MTBF) | 1164104 h 1164104 h |
| Multicast support | Y Yes |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Non-operating altitude | 0 - 3000 m 0 - 3000 m |
| Number of VLANs | 64 64 |
| Operating altitude | 0 - 3000 m 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 0.192 MB 0.192 MB |
| Password protection | Yes |
| Port mirroring | Y Yes |
| Power over Ethernet (PoE) | Yes Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 4 |
| Power supply included | Y Yes |
| Quality of Service (QoS) support | Y Yes |
| Quick start guide | Y Yes |
| Rack mounting | No |
| Rate limiting | Y Yes |
| Storage relative humidity (H-H) | 0 - 95 % 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C -20 - 70 °C |
| Store-and-forward | Y Yes |
| Switch layer | L3 L3 |
| Switch type | Managed Managed |
| Switching capacity | 10 Gbit/s 10 Gbit/s |
| Total Power over Ethernet (PoE) budget | 63 W 63 W |
| VLAN support | Y Yes |
| Wall mountable | Y Yes |
| Web-based management | Y Yes |
| Weight | 390 g |
| Width | 158 mm |
| Fanless | Yes |
| Harmonized System (HS) code | 85176990 |
Specific References
- EAN13
- 0606449153156

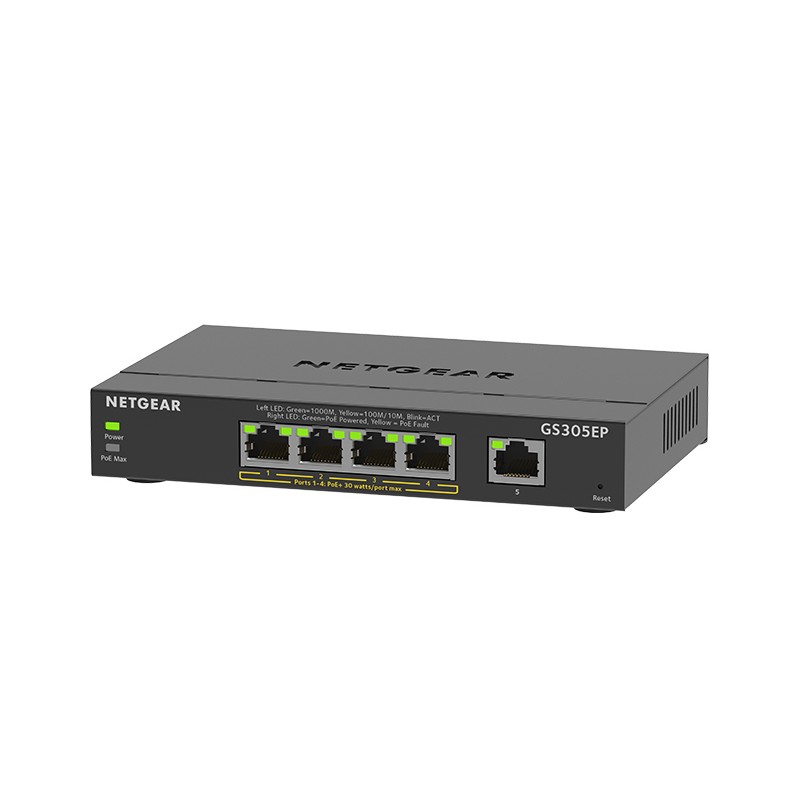

Netgear GS305EP
Managed, L3, 5x 10/100/1000 RJ45, 4x PoE 63W, 10Gbps, 158 x 101 x 27 mm
£91.90
£76.58 Ex. VAT
Managed, L3, 5x 10/100/1000 RJ45, 4x PoE 63W, 10Gbps, 158 x 101 x 27 mm
