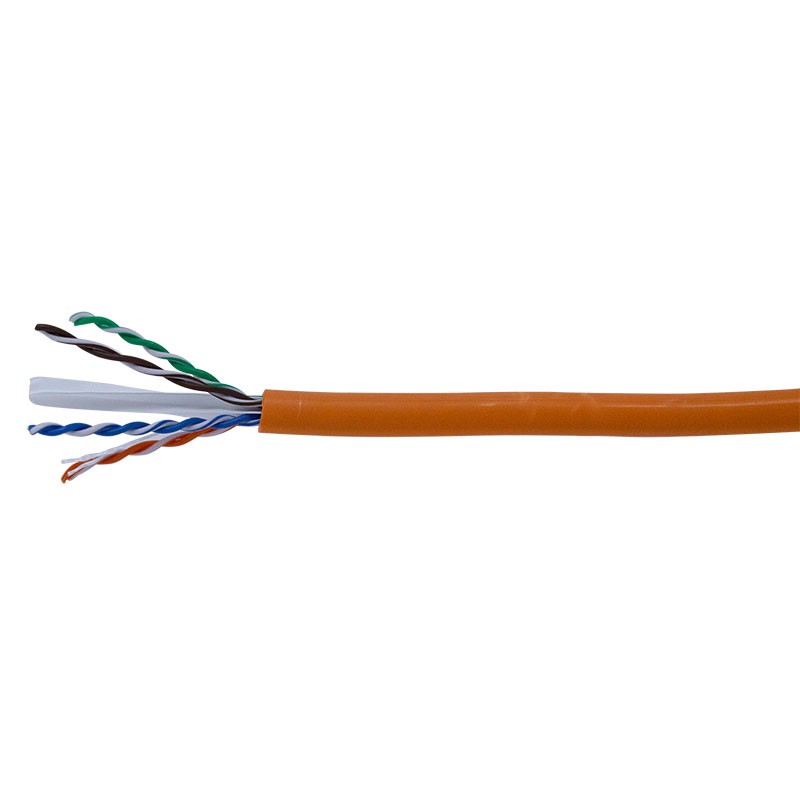

Cat6 U/UTP LSZH B2ca Solid Cable

Images are for illustrative purposes only.

Cat6 U/UTP LSZH B2ca Solid Cable

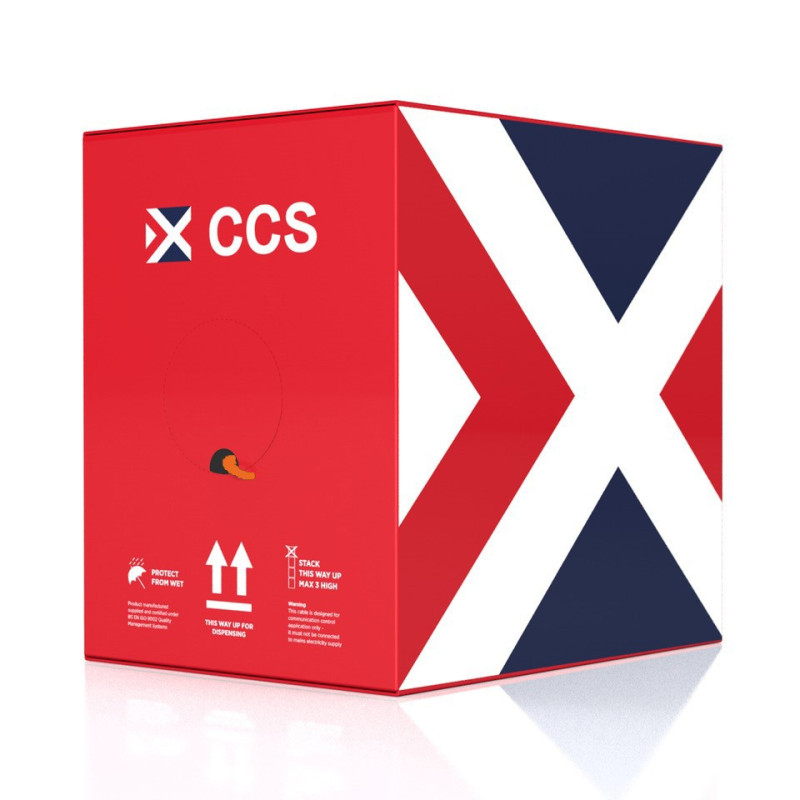

Available in 305m boxes.

001-003-005-68

In Stock

Category 6 Unshielded Twisted Pair Cable is designed for use in next generation data communications networks, and will ... Read More

New product

£122.63 Inc VAT.

£102.19

  • More info

  • Details

  • Spec Sheet

Category 6 Unshielded Twisted Pair Cable is designed for use in next generation data communications networks, and will comfortably support present applications including Gigabit Ethernet.

The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.

Connectix Category 6 UTP Solid Cable offers the performance characteristics required by the ever-present Category 6 Standard. When used in conjunction with Connectix Category 6 Modules and Patch Panels the user will get a link performance exceeding Category 6 requirements. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.

Features & Benefits

• Category 6 performance
• Supplied metre marked for easy installation
• Performance exceeding Category 6 Specifications
Construction4 twisted pairs cabled together with spine
Impedance100 MHz +/- 15 Ω
Operating temperature (T-T)-20˚C to +70˚C
Conforms toIEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/ANSI Cenelec EN50174
Fire RatingB2ca s1a,d0,a1
Inner Conductor0.53mm (+/-0.01mm) plain copper
InsulationHigh density polyethylene
Colour CodePair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White
JacketFR-LSZH
Overall Diameter6.1 +/- 0.3 mm
Min. Bending Radius Installed24.5mm
DC ResistanceMax 2.5%
Velocity Ratio69%
Installation temperature (T-T)0˚C to +50˚C
SheathFR-LSZH
Capacitance Unbalance (pair to ground)< 330 pF/100 m
Insulation Resistance> 5000 MΩ*Km
Installation Temperature Range0˚C to +50˚C
RAL ColourOrange - 2004
Characteristic Impedance @1-250 MHz100 +/- 15 Ω
Operating Temperature Range-20˚C to +70˚C
Dielectric Strength2500V DC 2s
ManufacturerConnectix Cabling Systems
