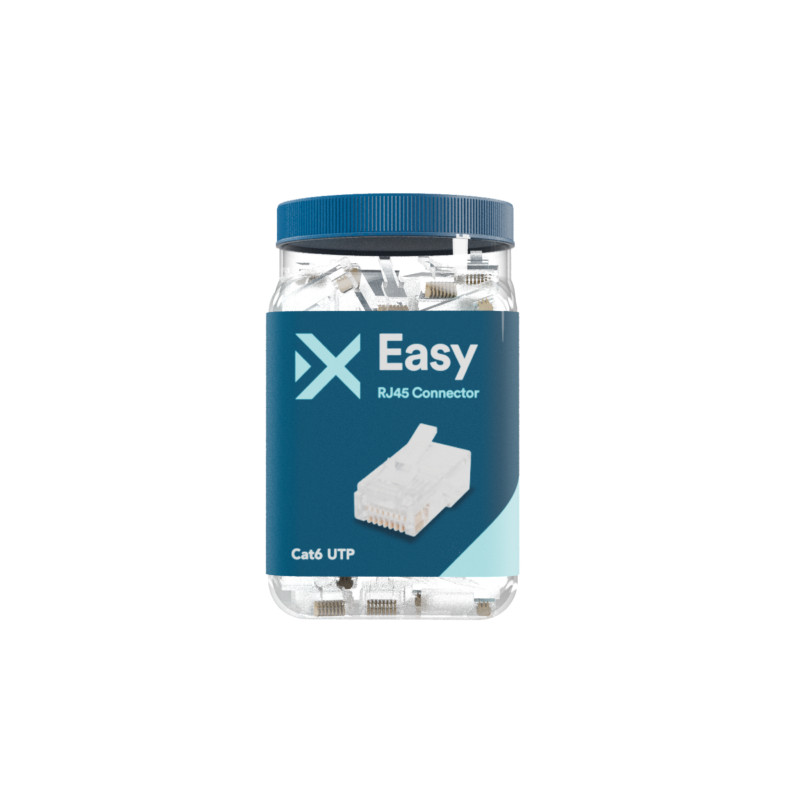

Cat6 UTP RJ45 Easy Plugs

Connectix Cat6 Easy RJ45 Pass through Connectors have been designed with speed and precision in mind.

More details

In Stock

1 Pot = 100 plugs 1 box = 20 Pots Our 'Easy' range of RJ45 pass through plugs are made from high quality engineered plastic ... Read More

New product

£36.00

£30.00 tax excl.

  • More info

  • Details

  • Spec Sheet

1 Pot = 100 plugs
1 box = 20 Pots

Our 'Easy' range of RJ45 pass through plugs are made from high quality engineered plastic with brass gold over nickel plating contacts.

For best results use with the 'Easy crimp tool allows you to cut, strip and terminate a plug all in one. The Crimp tool Trims the excess wires as it crimps

Features & Benefits

  • Easy to verify RJ45 568A or 568B colour code
  • Gold Plated Contacts
  • For best results use Connectix Easy RJ45 Crimp Tool
  • Cat6 Performance


See below for the 4 step 'Easy' Instructions

easy crimp step 1
1 Remove approximately 20mm of outer jacket using the multi-purpose crimp tool.
2 Arrange wires into the correct colour code sequence (most commonly EIA/TIA 568B). Slot cable into the plug pushing the wires through. Outer sheath of cable should sit inside the plug as far up as possible.
3 Press the ‘Lock’ Button on Crimp tool to open it ready for use. Insert the loaded RJ45 plug into the socket and squeeze the handle to crimp the plug, the excess wire will also be trimmed at the same time.
4 If you have followed the instructions you should now have a fully working RJ45 Connection.
Manufacturer Connectix Cabling Systems
