Connectix Easy RJ45 Pass Through...
1 Pot = 100 plugs 1 box = 20 Packs The FTP Cat6 modular plugs are made from high quality engineering plastic with brass gold ... Read More
This product is no longer in stock
1 Pot = 100 plugs
1 box = 20 Packs

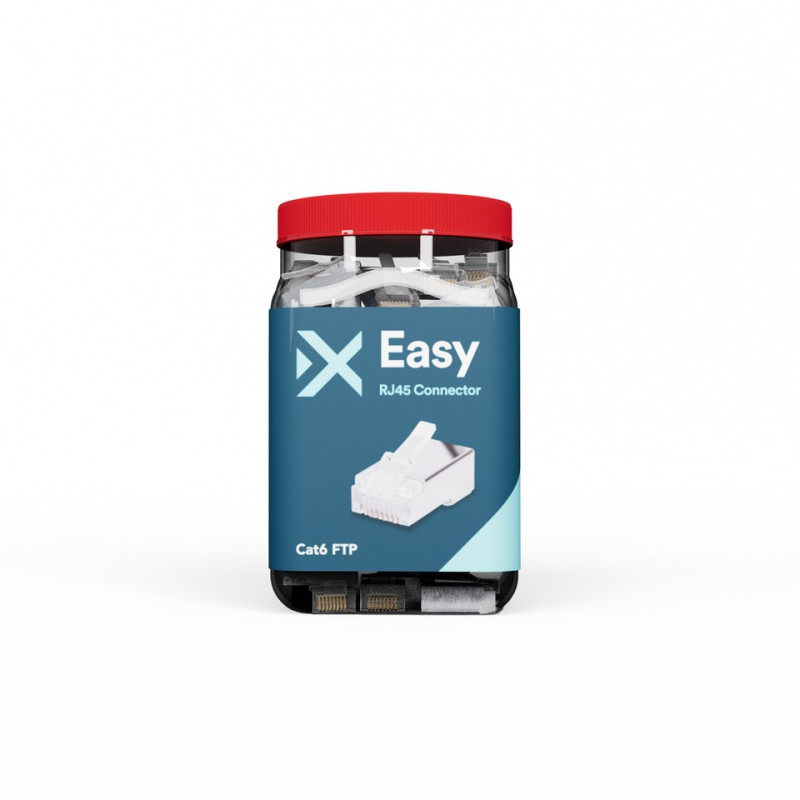

The FTP Cat6 modular plugs are made from high quality engineering plastic with brass gold over nickel plating contacts.

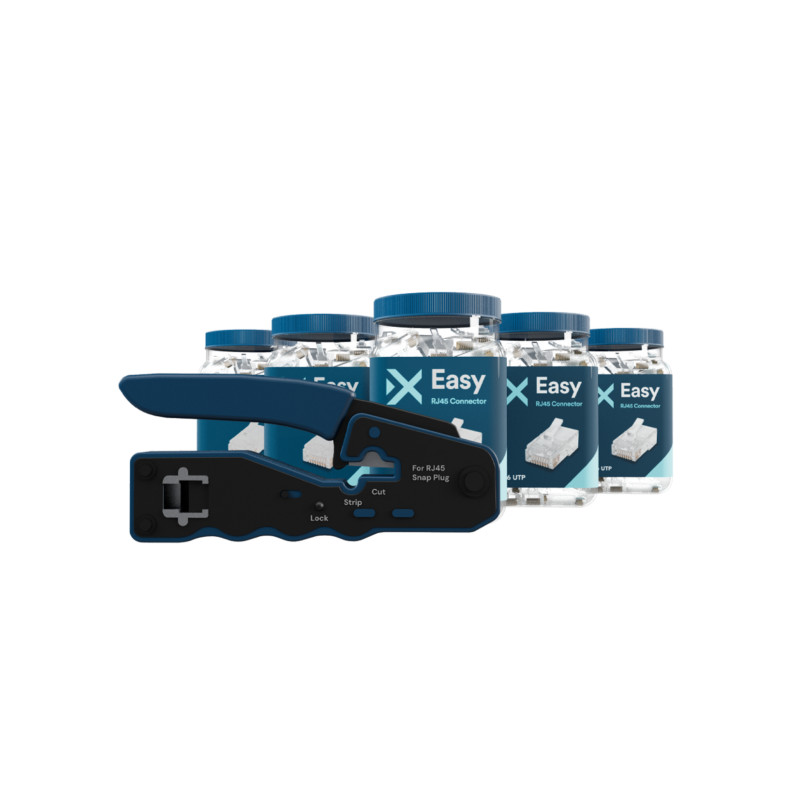

For best results use with the 'Easy' crimp tool, it allows you to cut, strip and terminate a plug all in one. The Crimp tool Trims the excess wires as it crimps
Features & Benefits
|1||Remove approximately 20mm of outer jacket using the multi-purpose crimp tool.|
|2||Arrange wires into the correct colour code sequence (most commonly EIA/TIA 568B). Slot cable into the plug pushing the wires through. Outer sheath of cable should sit inside the plug as far up as possible.|
|3||Press the ‘Lock’ Button on Crimp tool to open it ready for use. Insert the loaded RJ45 plug into the socket and squeeze the handle to crimp the plug, the excess wire will also be trimmed at the same time.|
|4||If you have followed the instructions you should now have a fully working RJ45 Connection.|
|Manufacturer||Connectix Cabling Systems|
