Images are for illustrative purposes only.

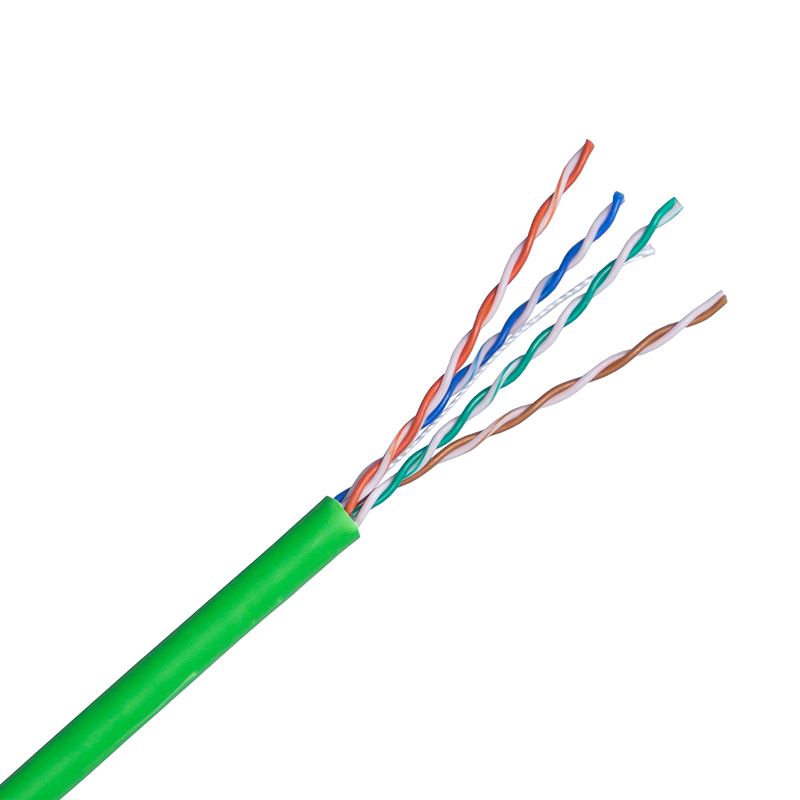

Cat5e UTP LSZH Cca Solid Cable

Available in 305m boxes.

More details

001-003-003-68

In Stock

Connectix Enhanced Category 5 UTP Cable is designed for high speed LANs including Gigabit Ethernet applications. The Cca ... Read More

New product

£174.96

£145.80 tax excl.

  • More info

  • Details

  • Spec Sheet

Connectix Enhanced Category 5 UTP Cable is designed for high speed LANs including Gigabit Ethernet applications.

The Cca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations, exceeding the requirements of BS6701:2016+A1:2017 for installation cables.

When used with Connectix Enhanced Category 5 panels and modules it gives the exceptional performance required for transmission over all four pairs.

Features & Benefits

• Suitable for Gigabit Ethernet applications
• Supplied metre marked for easy installation
• Pure copper cores
• Excellent performance exceeding ANSI/TIA Enhanced Category 5 specifications

Please Note: This cable is NOT Copper Cable Aluminium
Construction 4 twisted pairs cabled together
Impedance 100 MHz +/- 15 Ω
Operating temperature (T-T) -20˚C to +70˚C
Conforms to IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
Fire Rating Cca,s1.d0,a1
Inner Conductor 24 AWG plain copper
Insulation High density polyethylene
Colour Code Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White
Jacket FR-LSZH
Overall Diameter 5.4 +/- 0.4 mm
Min. Bending Radius Installation 44mm
Min. Bending Radius Installed 22mm
DC Resistance < 9.4 Ω/100 m
Velocity Ratio 69%
Installation temperature (T-T) 0˚C to +50˚C
Manufacturer Connectix Cabling Systems
