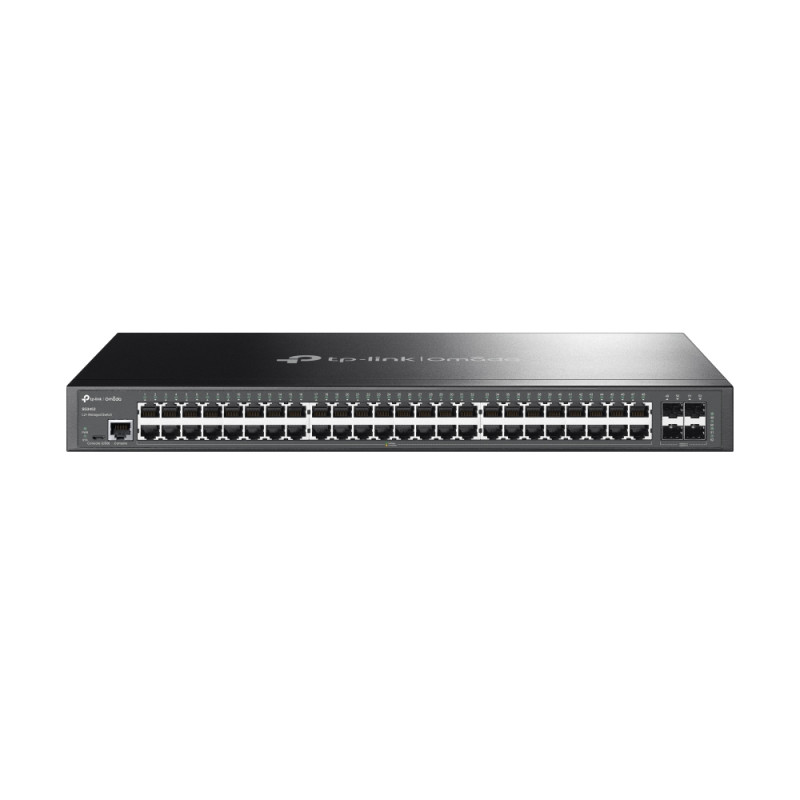

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
  • TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
  • TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cables includedAC
CertificationCE, FCC, RoHS
Console portRJ-45/micro-USB
Depth220 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flash memory32 MB
Flow control supportY
Form factor1U
Forwarding rate77.38 mpps
Gigabit Ethernet (copper) ports quantity48
Head-of-line (HOL) blockingY
Heat dissipation118.94 BTU/h
Height44 mm
IGMP snoopingY
Internal memory256 MB
IP routingY
Jumbo frames supportY
Link aggregationY
MAC address filteringY
MAC address table16000 entries
Management protocolsSNMPv1/v2c/v3, SNTP
MIB supportYes
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Port mirroringY
Power consumption (max)34.86 W
Power over Ethernet (PoE)No
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mount kitY
Rack mountingYes
Spanning tree protocolY
SSH/SSL supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch layerL2+
Switch typeManaged
Switching capacity104 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
FanlessY
Cloud-managedY
IPv4 routes48
IPv6 routes48

sg3452.pdf

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots Data Sheet

Download (3.48M)
