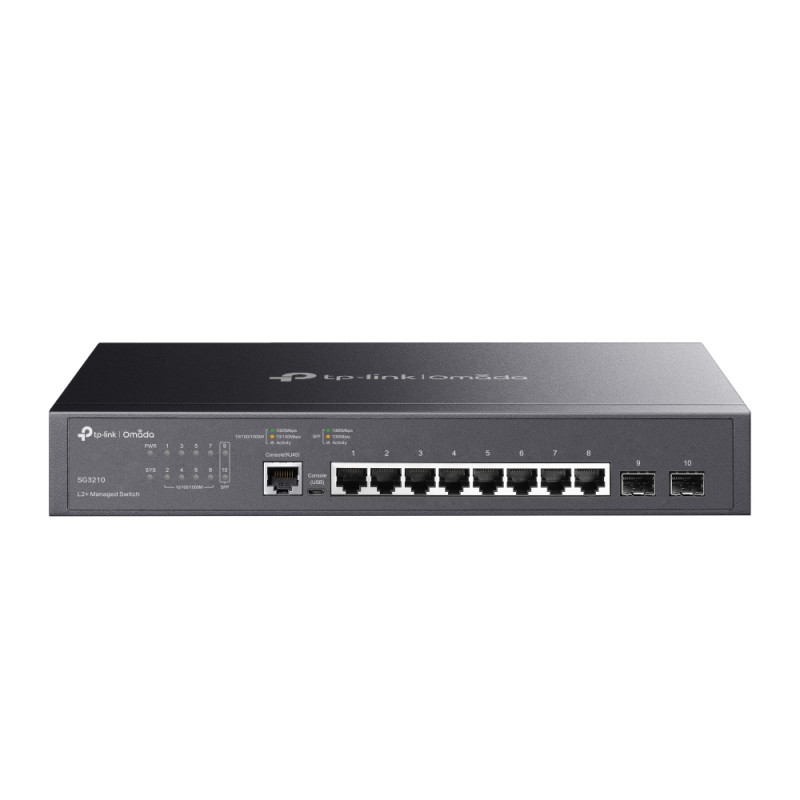

HomeTP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
  • TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
  • TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
  • TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
  • TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
  • TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
  • TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Console portRJ-45/micro-USB
Depth180 mm
Firmware upgradeableY
Flow control supportY
Form factor1U
Forwarding rate14.9 Mpps
Head-of-line (HOL) blockingY
Heat dissipation23.33 BTU/h
Height44 mm
IGMP snoopingY
IP routingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table8000 entries
Management protocolsSNMPv1/v2c/v3, SNTP
ManualY
MIB supportYes
Minimum system requirementsMicrosoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of IP interfaces16
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory4.1 MB
Port mirroringY
Power consumption (max)6.84 W
Power over Ethernet (PoE)No
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mount kitY
Rack mountingYes
Rate limitingY
Spanning tree protocolY
SSH/SSL supportY
Static port securityY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch layerL2/L3
Switch typeManaged
Switching capacity20 Gbit/s
System event logY
User guideY
VLAN supportY
Web-based managementY
Width294 mm
FanlessY
Cloud-managedY
IPv4 routes48
IPv6 routes48

sg3210.pdf

TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots Data Sheet

Download (3.48M)

Similar products

  • TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
    TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link TL-SX3016F
    TP-Link TL-SX3016F
  • TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+
    TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+
  • TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
    TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
    TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+

TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

8× 10/100/1000 Mbps RJ45, 2× 100/1000 Mbps SFP, RJ45/Micro-USB, 20 Gbps, 8K MAC, 9KB Jumbo, 294×180×44 mm

sg3210

Out of Stock

£111.43
£92.86 Ex VAT.
