Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
10G support No
AC input frequency 50 Hz
AC input voltage 220 V
Auto MDI/MDI-X Y
Auto-negotiation Y
Basic switching RJ-45 Ethernet ports quantity 9
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cable types supported Cat3,Cat4,Cat5,Cat5e
Certification CE, FCC, RoHS
DC input voltage 53.5 V
Depth 126 mm
Flow control support Y
Forwarding rate 14.88 Mpps
Heat dissipation 261.66 BTU/h
Height 26 mm
LED indicators Y
MAC address table 4000 entries
Networking standards IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Package type box
Power consumption (max) 76.96 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Power source DC/PoE
Power supply included Y
Quality of Service (QoS) support Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Y
Switch type Unmanaged
Switching capacity 20 Gbit/s
Total Power over Ethernet (PoE) budget 61 W
User guide Y
Width 209 mm

Specific References

EAN13
4895252504576

ls1210gp.pdf

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ Data Sheet

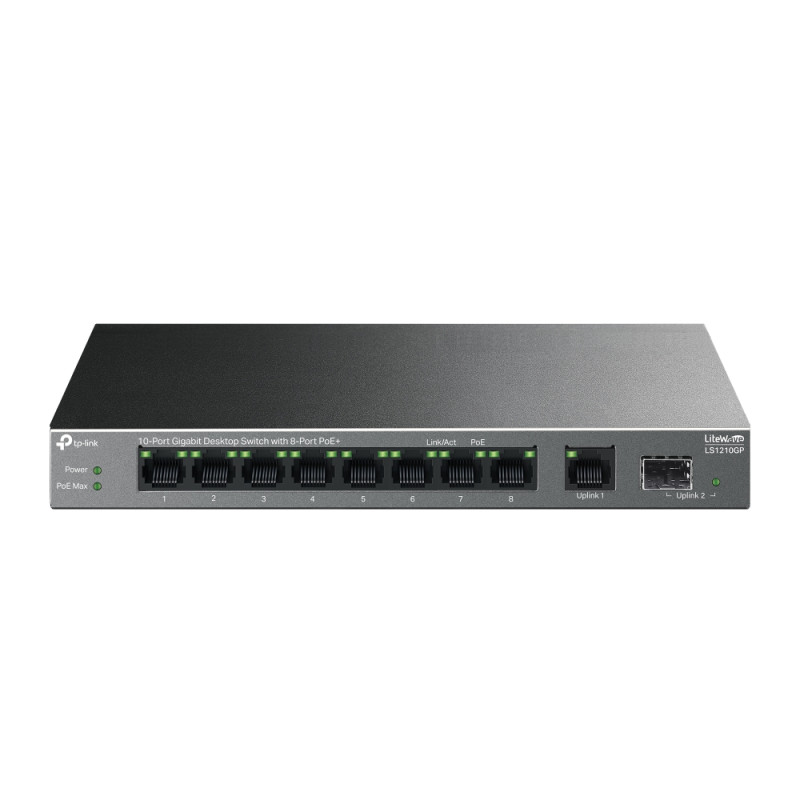

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

9× 10/100/1000 Mbps RJ45, 1× Gigabit SFP Port, PoE+ 61W, 20 Gbps, 14.88 Mpps, 4K MAC, 16 KB Jumbo, 209x126x26 mm
Out of Stock
£82.15
£68.46 Ex. VAT
Reference: ls1210gp
Quantity
