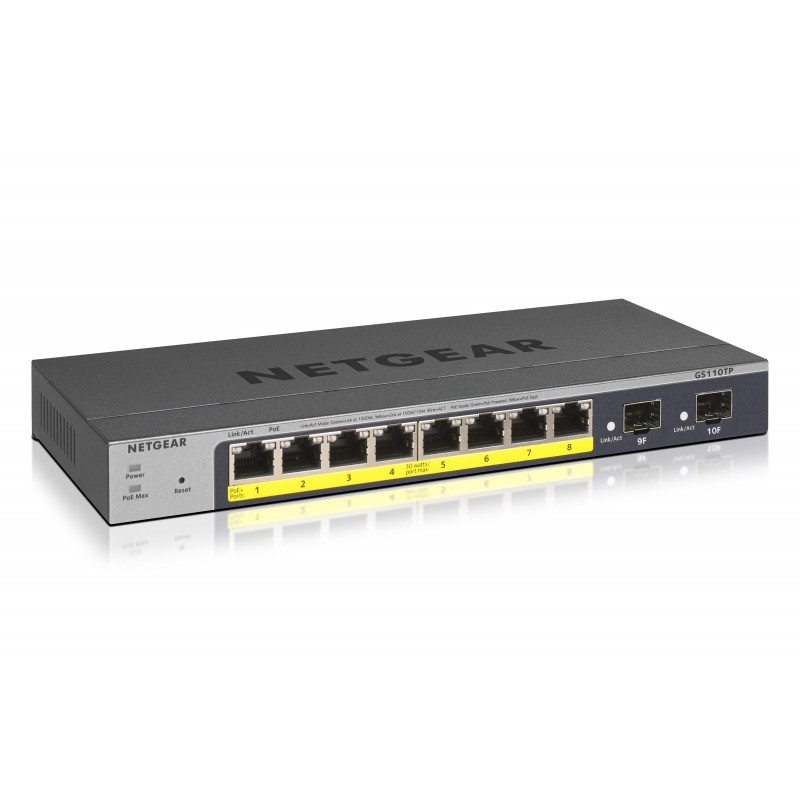

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
CertificationCE, FCC, VCCI Class B, C-Tick
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Data link protocolsEthernet, Fast Ethernet, Gigabit Ethernet
DC input voltage54 V
Depth101 mm
Flash memory32 MB
Flow control supportY
Full duplexY
Heat dissipation237.38 BTU/h
Height27 mm
IGMP snoopingY
Input current1.25 A
Internal memory128 MB
Jumbo frames supportY
LED indicatorsActivity,LAN,Link,PoE,Power,Speed
Link aggregationY
MAC address filteringY
MAC address table8000 entries
Management protocolsSNMP
ManualY
Mean time between failures (MTBF)1200041 h
Memory typeRAM
Multicast supportY
Networking standardsIEEE 802.3ab,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Non-operating altitude0 - 3000 m
Number of multicast groups filtered256
Number of VLANs64
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Package depth267 mm
Package height86 mm
Package typebox
Package weight1490 g
Package width161 mm
Packet buffer memory0.5 MB
Port mirroringY
Power consumption (max)15.1 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power supply includedY
Processor frequency500 MHz
Quality of Service (QoS) supportY
Rate limitingY
Security algorithms802.1x RADIUS
Spanning tree protocolY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Store-and-forwardY
Supported network protocolsHTTP, HTTPS
Switch layerL2/L3/L4
Switch typeManaged
Switching capacity20 Gbit/s
Switching protocolsSNMP
Total Power over Ethernet (PoE) budget69.5 W
Web-based managementY
Weight610 g
Width236 mm
Master (outer) case width274 mm
Master (outer) case length350 mm
Master (outer) case height309 mm
Master (outer) case weight9730 g
Quantity per master (outer) case6 pc(s)

gs110tp-300eus.pdf

Netgear GS110TP Data Sheet

Download (1.91M)
