Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
DC input voltage | 5 V |
Depth | 64 mm |
Flow control support | Y |
Forwarding rate | 7.44 Mpps |
Heat dissipation | 12.11 BTU/h |
Height | 24 mm |
Housing material | Metal |
Input current | 1 A |
Jumbo frames support | Y |
LED indicators | Activity,Link,Power |
MAC address table | 2000 entries |
Mean time between failures (MTBF) | 1455562 h |
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
Number of queues | 8 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Power consumption (max) | 3.55 W |
Quality of Service (QoS) support | Y |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -10 - 70 °C |
Store-and-forward | Y |
Switch type | Unmanaged |
Switching capacity | 10 Gbit/s |
Width | 100 mm |

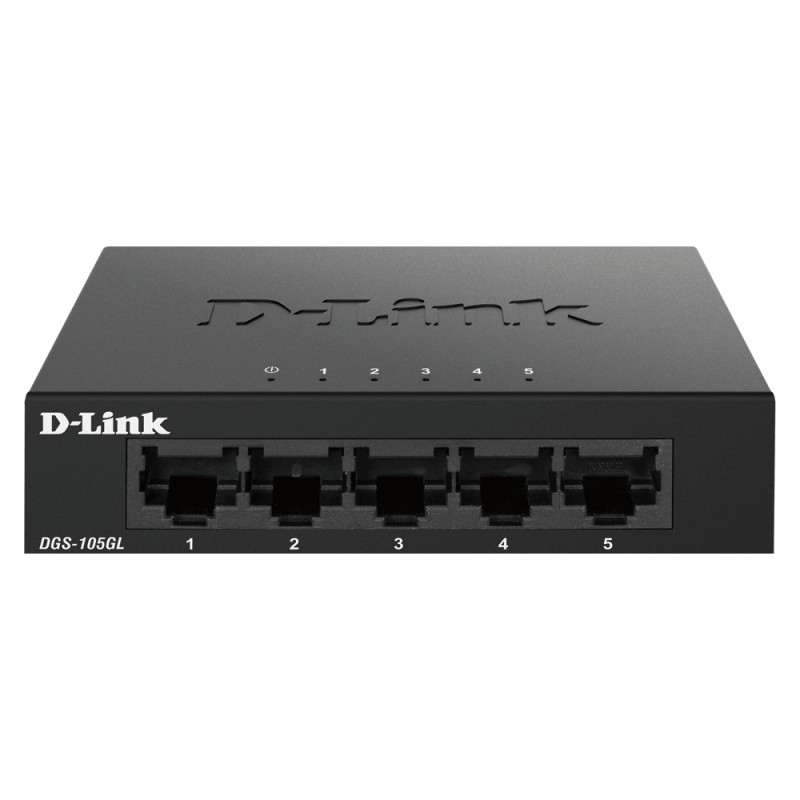

5 Port Gigabit Metal Unmanaged Desktop Switch
DGS-105GL
Stock Due 22-09-2005
