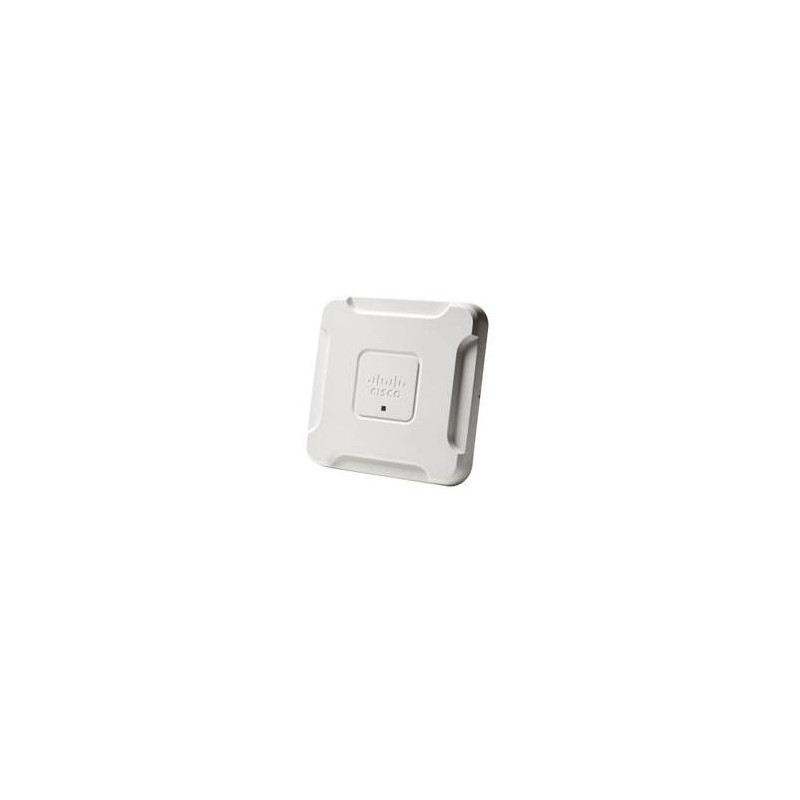

Cisco WAP581

Images are for illustrative purposes only.

Cisco WAP581

2x 2.5GbE RJ-45, PoE, VLAN, QoS, 38x229x229 mm

wap581-e-k9

In Stock

Today Wi-Fi is the primary way for mobile access; small to medium-sized businesses are now looking for simple, yet ... Read More

New product

£0.00 Inc VAT.

£0.00

  • More info

  • Details

  • Spec Sheet

Today Wi-Fi is the primary way for mobile access; small to medium-sized businesses are now looking for simple, yet easy-to-deploy Wi-Fi networks where they can provide the best experience to their employees and customers. To stay productive, they need dependable, business-class access to network applications throughout the office. The Cisco WAP581 Wireless-AC Dual Radio Wave 2 Access Point with 2.5GbE LAN provides a simple, cost-effective way to extend highly secure, high-performance mobile networking to your employees and guests, so they can stay connected anywhere in the office, regardless of what mobile devices they use.



The Cisco WAP581 Wireless-AC Dual Radio Wave 2 Access Point with 2.5GbE LAN uses concurrent dual-band radio for improved coverage and user capacity. The 4 x 4 MU-MIMO technology on the 5.0-GHz radio and 3 x 3 MIMO on the 2.4-GHz radio allow the access point to run at maximum performance and deliver better user experience. Two Gigabit Ethernet LAN interfaces, one with 2.5 Gigabit Ethernet and the second with 1 Gigabit Ethernet with PoE facilitate flexible installation and reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features let you prioritize bandwidth-sensitive traffic for voice-over-IP (VoIP) and video applications.



To provide highly secure guest access to visitors and other users, Cisco WAP581 Wireless-AC Dual Radio Wave 2 Access Point with 2.5GbE LAN supports a captive portal with multiple authentication options and the ability to configure rights, roles, and bandwidth. A customized guest login page lets you present a welcome message and access details, and reinforces your brand with company logos.



The access points are easy to set up and use, with an intuitive wizard-based configuration to get you operational in minutes. An attractive design with flexible mounting options allows the access points to smoothly blend into any small or medium-sized business environment.



To enhance reliability and safeguard sensitive business information, the WAP581 supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1X RADIUS authentication helps keep unauthorized users out.



Designed to scale smoothly as your organization grows, the access points feature controller-less Single Point Setup, which simplifies the deployment of multiple access points without additional hardware. With the Cisco WAP581 you can extend business-class wireless networking to employees and guests anywhere in the office, with the flexibility to meet new business needs for years to come.



Figure 1 shows a typical wireless access point configuration. Figures 2 and 3 show the front and back panels of the access point, respectively.
Antenna gain level (max)6.23 dBi
Antennas quantity4
Cable lock slotY
Cable lock slot typeKensington
Cables includedLAN (RJ-45)
CertificationUL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, EN 60950-1, FCC 15.247, 15.407, RSS-210, EN 300.328, EN 301.893, AS/NZS 4268.2003, FCC 15.107 + 15.109, ICES-003, EN 301.489-1 + -17
Depth229 mm
DHCP clientY
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Firmware upgradeableY
Flash memory128 MB
Height38 mm
InternalN
Internal memory256 MB
LED indicatorsY
Maximum data transfer rate2500 Mbit/s
Mounting kitY
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af,IEEE 802.3u
Number of users200 user(s)
Operating relative humidity (H-H)10 - 85 %
Operating system installedLinux
Operating temperature (T-T)0 - 40 °C
PlacementCeiling,Wall
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Quick start guideY
Reset buttonY
Security algorithms802.1x RADIUS,HTTPS,SSID,WPA,WPA2
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-20 - 70 °C
VLAN supportY
Web-based managementY
Weight1400 g
Width229 mm
Number of SSID supported33
Throughput data rate2800 Mbit/s
Antenna featuresIntegrated antenna
EAN0882658968907
ManufacturerCisco
