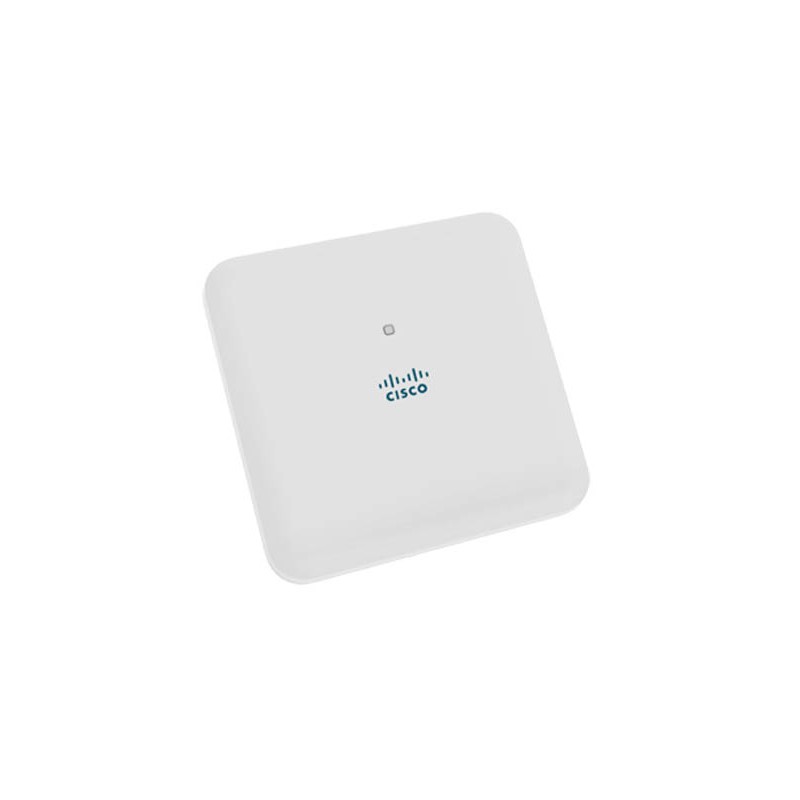

Cisco Aironet 1830
  • Cisco Aironet 1830
  • Cisco Aironet 1830
Gigabit Wi-Fi Has Fully Arrived



Redesign your enterprise wireless LAN to support the explosion of mobile devices. Cisco's cost-effective enterprise access point supports the latest Wi-Fi standard, 802.11ac Wave 2.



Designed for small and medium-sized networks, the Aironet 1830 Series meets the growing requirements of wireless networks and delivers a better user experience.



The Aironet 1830 Series offers customers:



Flexible deployment modes.



- Cisco Mobility Express Solution is an easy-to-deploy solution for up 25 access points that does not require a controller appliance

- Controller-based deployments support small and medium-sized networks that exceed 25 access points



Better Wi-Fi coverage and performance with the latest Wi-Fi technology.



- Supports 802.11ac Wave 2 (dual radio, 80 MHz channel size) and 3x3 multiple input and multiple output (MIMO)



Improved client performance with multi-user MIMO (MU-MIMO).



- Get MU-MIMO with two spatial streams for 802.11ac Wave 2 clients

- Transmit beamforming for a better client experience
Antenna gain level (max)5 dBi
CertificationUL 60950-1\nCAN/CSA-C22.2 No. 60950-1\nUL 2043\nIEC 60950-1\nEN 60950-1
Channels quantity21 channels
Depth210.8 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Flash memory256 MB
Frequency band2.412 - 2.472, 5.18 - 5.32 GHz
Height50.8 mm
Input frequency50 - 60 Hz
Input voltage100 - 240 V
InternalN
Internal memory1024 MB
LED indicatorsY
Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Non-operating altitude0 - 4572 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Power over Ethernet (PoE)Yes
Security algorithms802.1x RADIUS,AES,EAP-FAST,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,PEAP,WPA,WPA2
Storage temperature (T-T)-30 - 70 °C
USB 2.0 ports quantity1
Weight1410 g
Width210.8 mm
Maximum data transfer rate (5 GHz)867 Mbit/s
Antenna featuresIntegrated antenna

air-ap1832i-i-k9.pdf

Cisco Aironet 1830 Data Sheet

Download (530.24k)

Cisco Aironet 1830

Indoor, 802.11ac Wave 2, Dual Band, Controller-Based, Internal antennas, I Regulatory Domain

AIR-AP1832I-I-K9

Out of Stock

£706.52
£588.77 Ex VAT.
