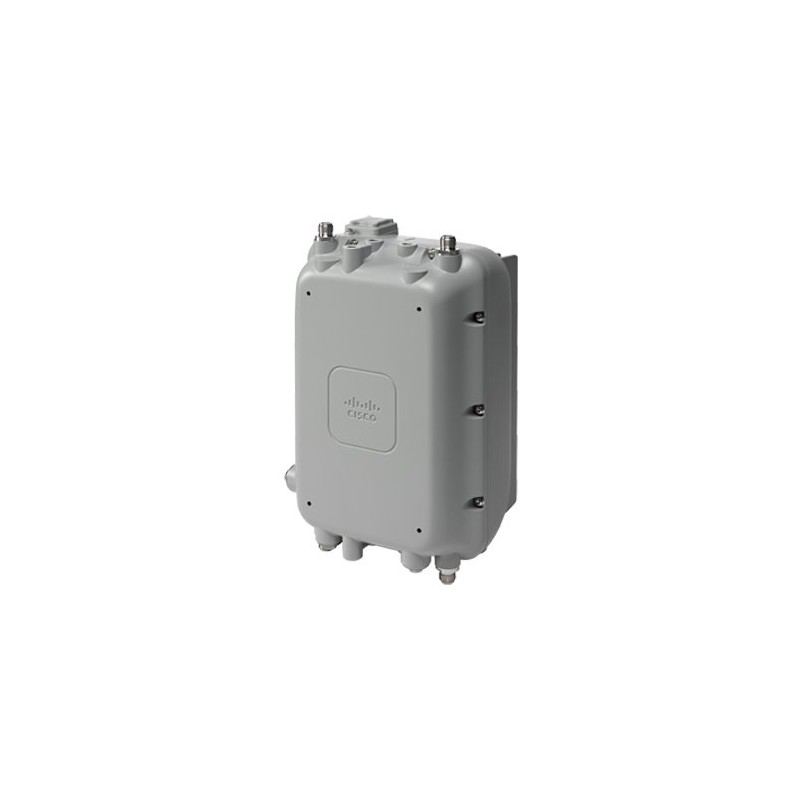

Cisco Aironet 1572EAC
  • Cisco Aironet 1572EAC
  • Cisco Aironet 1572EAC
The Cisco Aironet 1570 Series outdoor access point is ideal for both enterprise and carrier-class network operators looking to extend Wi-Fi coverage outdoors. It’s the industry’s highest-performing outdoor AP and supports the latest Wi-Fi standard, 802.11ac, with data connection speeds up to 1.3 Gbps. This industrial-grade AP supports 4x4 Multiple-Input and Multiple-Output (MIMO) smart antenna technology and three spatial streams for optimum performance.



The Aironet 1570 provides higher throughput over a larger area with more pervasive coverage. The AP is also well suited to high-density environments w here many users in close proximity generate RF interference that needs to be managed. Examples of environments that can benefit from the Aironet 1570 Series:

- Outdoor enterprise campuses

- Outdoor university and school campuses

- Public venues: stadiums, train stations, airports

- Service provider networks: Wi-Fi offload for mobile, fixed-line, and cable operators

- Mining operations

- Manufacturing yards

- Municipalities

- Large metropolitan areas
Antenna connector typeN-type
Antenna typeExternal
CertificationUL/cUL 60950, IEC 60950, EN 60950, ARIB-STD 66, ARIB-STD T71, ANSI/IEEE C62.41, EN61000-4-5 Level 4 AC Surge Immunity, EN61000-4-4 Level 4 Electrical Fast Transient, EN61000-4-3 Level 4 EMC Field Immunity, EN61000-4-2 Level 4 ESD Immunity, EN60950 Overvol
Channel bandwidth80 MHz
Channels quantity23 channels
Depth201 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.412 - 2.462, 5.5 - 5.58, 5.66 - 5.7, 5.745 - 5.805 GHz
Height160 mm
Input frequency50/60 Hz
Input voltage40 - 90 V
International Protection (IP) codeIP67
LED indicatorsY
MAC address filteringY
Maximum data transfer rate1300 Mbit/s
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3at
Number of connectors4
Number of products included1 pc(s)
Operating temperature (T-T)-40 - 65 °C
PlacementPole
Power over Ethernet (PoE)Yes
Reset buttonY
Security algorithmsAES,EAP-PEAP,EAP-TLS,EAP-TTLS,IPSec,LEAP,TKIP,WPA,WPA2
Spread spectrum methodDSSS
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-50 - 70 °C
Transmitting power30 dBmW
WAN connectionEthernet (RJ-45)
Web-based managementY
Weight6100 g
Width300 mm
Antenna featuresDetachable antenna

air-ap1572eac-m-k9.pdf

Cisco Aironet 1572EAC Data Sheet

Download (863.24k)

Cisco Aironet 1572EAC

Outdoor AP, External Antennas, AC Power Model, M Regulatory Domain

AIR-AP1572EAC-M-K9

Out of Stock

£4,119.22
£3,432.68 Ex VAT.
