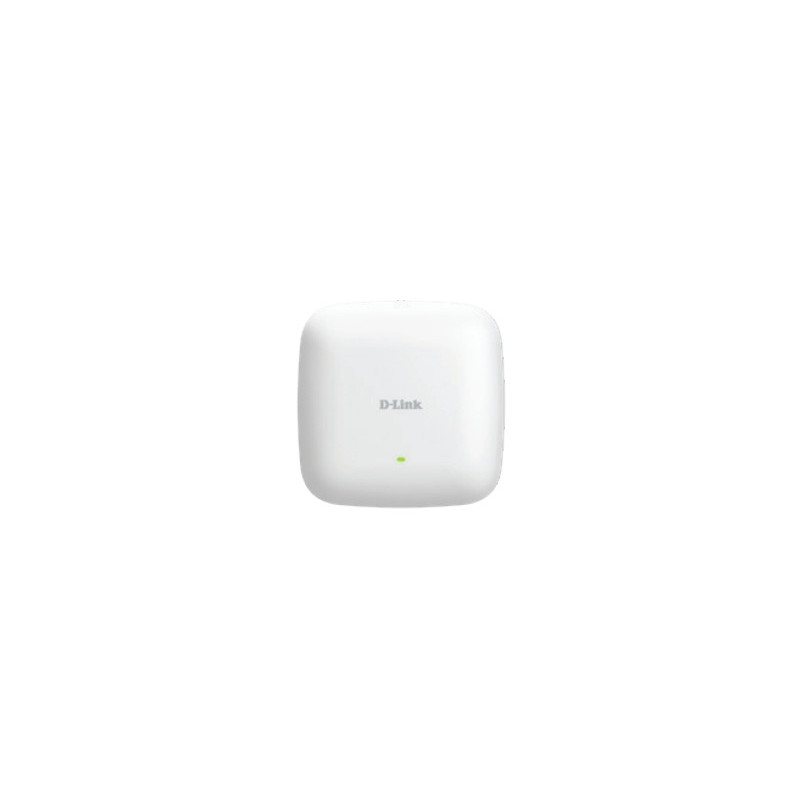

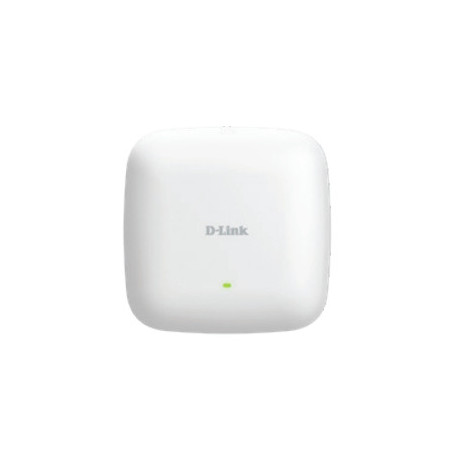

-Link Nuclias Connect BE9500 Wi-Fi 7 Access Point
Reasons to Buy
  • Indoor
  • Wi-Fi 7 BE11000
  • 11 Gbps Tri-Band WiFi
  • 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
  • 1x 10G PoE (802.3bt) + 1x 1GE


Technical Headlines
  • 2.4 GHz 720 Mbit/s
  • 5 GHz 2880 Mbit/s
  • 6 GHz 5760 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3bt
  • Power over Ethernet (PoE)
  • Internal


What’s new with Wi-Fi 7?
Along with a massive boost to speed, Wi-Fi 7 also introduces 320 MHz ultra-wide bandwidth, 4096-QAM, Multi-RU, and Multi-Link Operation, which all together make your wireless experience more reliable and efficient than ever before.

What’s the difference between Wi-Fi 5,
Wi-Fi 6 and Wi-Fi 7?


Wi-Fi 5 provided a sizeable jump in wireless throughput. And although Wi-Fi 6 provided 37% faster speeds, it was designed with efficiency improvements in mind.

Wi-Fi 7 brings a generation of higher throughput - 480% more than previous generations. A Wi-Fi 7 router, for example, will open up your entire home to the latest online experiences thanks to backwards compatibility.
Antenna type Internal
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3bt
Operating temperature (T-T) 0 - 40 °C
Placement Ceiling, Wall
Power over Ethernet (PoE) Yes
Quantity per pack 1 pc(s)
Source data-sheet Icecat.biz
Web-based management Yes
Number of SSID supported 24
Maximum data transfer rate (2.4 GHz) 720 Mbit/s
Maximum data transfer rate (5 GHz) 2880 Mbit/s
Antenna direction type Omni-directional
6 GHz Yes
Maximum data transfer rate (6 GHz) 5760 Mbit/s
Maximum Tx power (2.4 GHz) 23 dBmW
Maximum Tx power (5 GHz) 21 dBmW
Maximum Tx power (6 GHz) 21 dBmW

Specific References

EAN13
0790069477355

D-Link Nuclias Connect BE9500 Wi-Fi 7 Access Point

D-Link Nuclias Connect BE9500 Wi-Fi 7 Access Point, 2.4 GHz, 5 GHz, 6 GHz, 10,100,1000,10000 Mbit/s
In Stock
£228.18
£190.15 Ex. VAT
Reference: DAP-E9560
