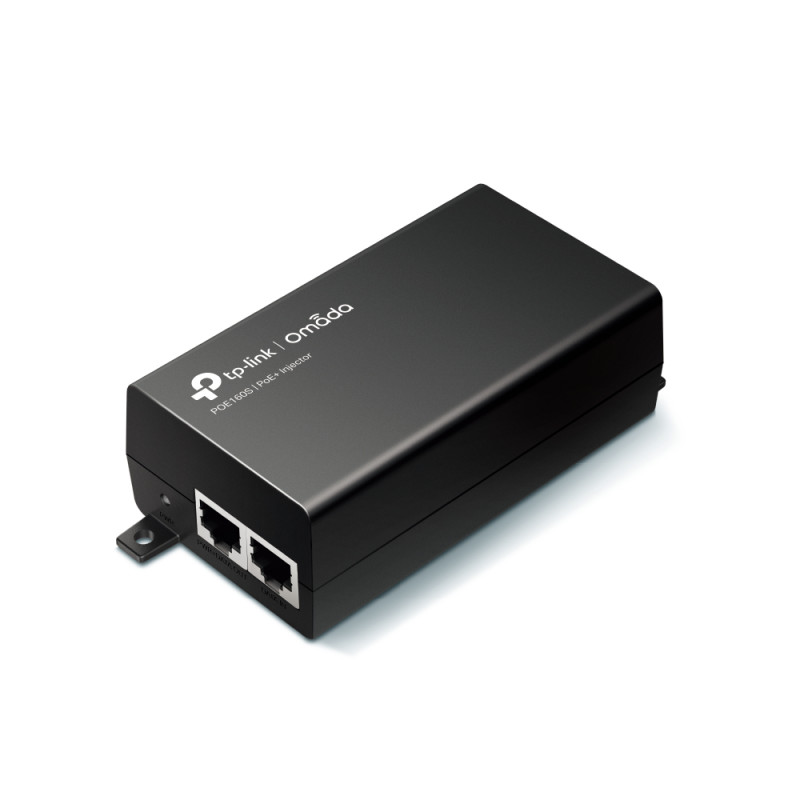

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Technical Headlines
- 10,100,1000 Mbit/s Cat3, Cat4, Cat5, Cat5e 100 m
- Power over Ethernet (PoE) IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
- Black
The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Cabling technology | 10/100/1000 |
| Depth | 59.4 mm |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Height | 36.8 mm |
| LED indicators | Power |
| Maximum operating distance | 100 m |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Number of products included | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output power | 30 W |
| Package type | Box |
| Plug and Play | Yes |
| Power cord included | Yes |
| Power over Ethernet (PoE) | Yes |
| Quick installation guide | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Wall mountable | Yes |
| Wall mounting kit | Yes |
| Width | 125 mm |
Specific References
- EAN13
- 8592978537609
TP-Link PoE+ Injector
TP-Link Omada PoE+ Injector, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, Cat3, Cat4, Cat5, Cat5e, Black
£22.75
£18.96 Ex. VAT
