Proven Industrial UPS power protection for control applications and harsh environments.

AC input frequency	40-70 Hz
AC outlet types	C13 coupler,C14 coupler
AC outlets quantity	10 AC outlet(s)
Cables included	USB
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Depth	715 mm
Display	LCD
Ethernet LAN (RJ-45) ports	2
Height	263 mm
LED indicators	Power,Status
Manual	Y
Maximum current	47 A
Maximum input current per phase	54 A
Maximum power	10000 W
Maximum total current draw per phase	18 A
Mounting	vertical
Nominal input voltage	230, 400 3PH V
Nominal output voltage	230 V
Non-operating altitude	0 - 15240 m
On/off switch	Y
Operating altitude	0 - 3048 m
Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	32 - 104 °F
Output voltage	220/230/240 V
Package depth	1000 mm
Package height	461 mm
Package type	box
Package weight	130000 g
Package width	600 mm
Packaging content	CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
PDU types	Basic
Rack mount kit	Y
Storage relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-15 - 45 °C
Surge energy rating	480 J
Surge protection	Y
Type	Three-phase
USB ports quantity	1
Weight	111820 g
Width	432 mm
Sustainability certificates	RoHS

APC SRT10RMXLIX806 Data Sheet

APC SRT10RMXLIX806

Name: Magic Patch
Address: 500 Avenue West, Essex, CM77 7AA, GB
Telephone: +44 1376 333 518
Price range: £0.10 - £50000

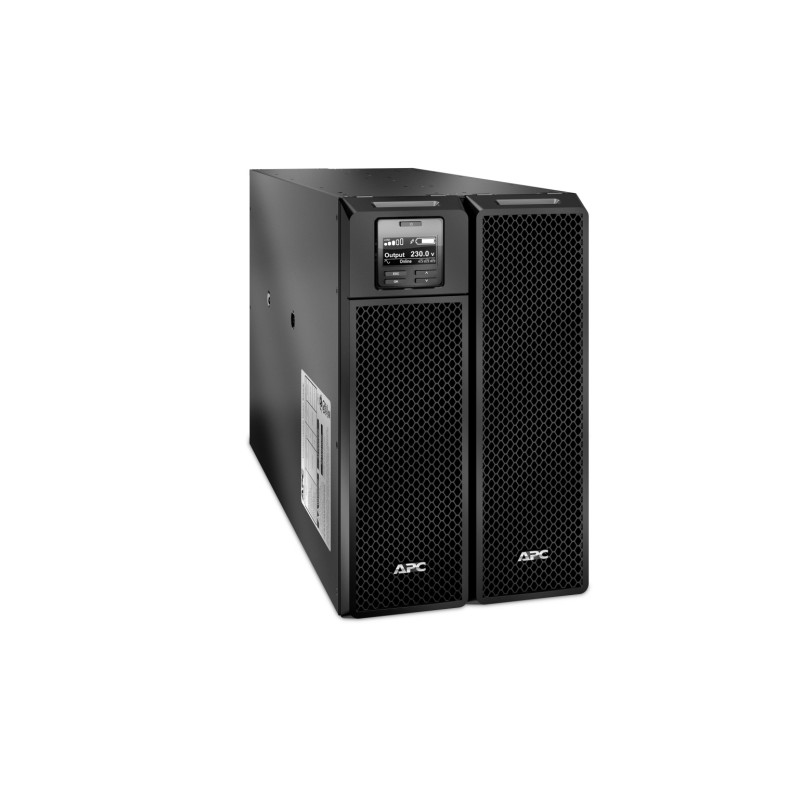

Smart-UPS SRT 10000VA RM 230V, Custom PDU

Reference: SRT10RMXLIX806

Out of Stock

£10,359.50

£8,632.92 Ex VAT.
